Equipment Name and Appearance

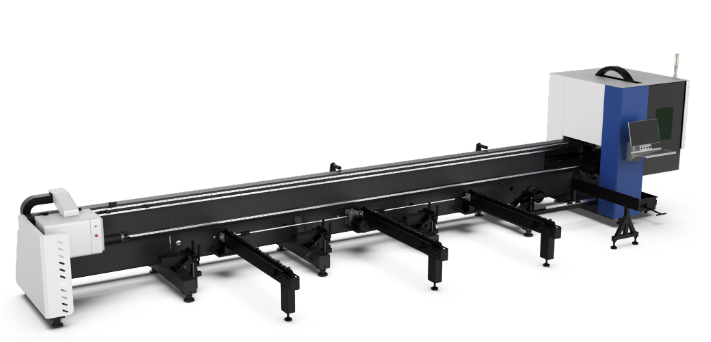

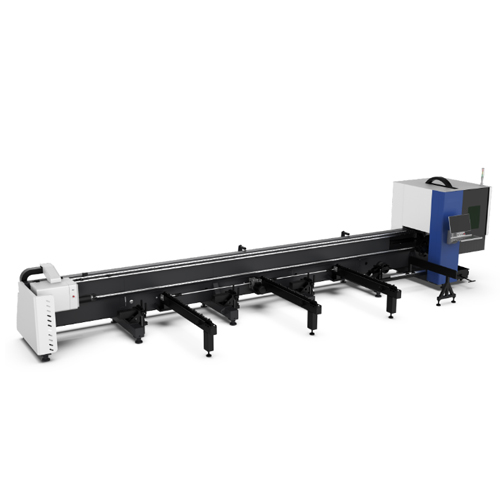

 K Series  K6020

Intelligent, Efficient, and Stable Cutting

 Application Industries: Display Props, Medical Devices, Fitness Equipment, Metal Furniture, Office Desks and Chairs, etc.

Equipment Name: K6020

1、Quantity: 1 unit

2、Category: High-Speed Laser Tube Cutting Machine

I. Equipment Configuration List

 *Note: 1. If the customer purchases the above configuration, it is recommended to purchase the specified brand and model; if the equipment configuration is changed arbitrarily, the customer shall bear the impact on the overall performance of the machine.

2. The warranty period for the entire equipment (excluding easily damaged parts such as optical fibers and lenses, consumables, natural disasters, war, improper operation, and human-caused damage) is one year.

II. Equipment Configuration Parameters

 *Note:  The achievable accuracy of the workpiece depends to some extent on factors such as workpiece type, pretreatment, sheet metal size, and the sheet metal's position within the working area.

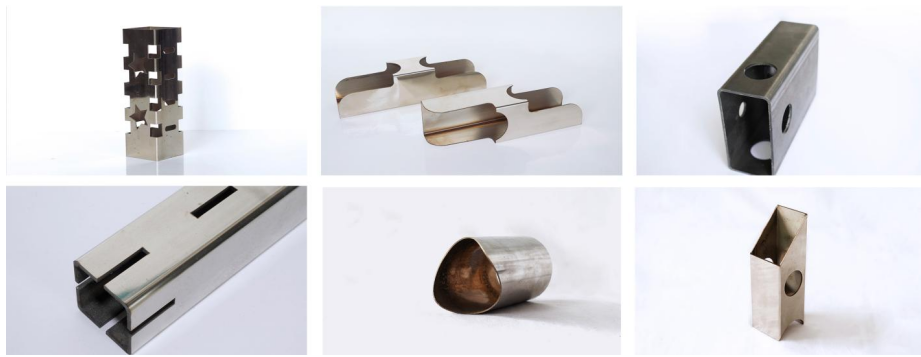

  III. Sample Cutting Display

IV. Main Equipment Configuration Description

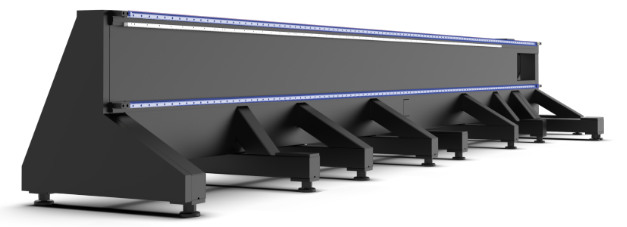

n 1. Side-mounted bed structure

Side-mounted bed, triangular frame structure, high load-bearing capacity, solid and stable, smooth and shock-resistant high-speed cutting, strong load-bearing capacity, high rigidity and high hardness.

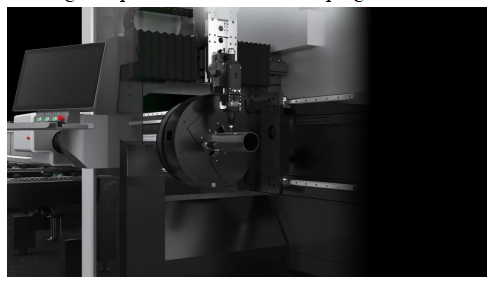

n 2. High-speed cutting, ultimate processing

High operating speed, shortening non-production time and helping users increase productivity.

n 3. Precise calculation, extremely short tail material

When cutting the tail end of pipes, two cutting methods, front clamp avoidance and front clamp movement, can achieve extremely short tail material and save costs.

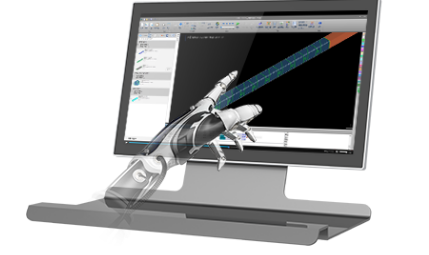

n 4. Intelligent pipe cutting system

The cutting software is intelligent, convenient and efficient; paired with professional nesting software and a rich process database, it saves time, materials and worry; it supports the processing of various profiles such as round pipes, square pipes, racetrack pipes and elliptical pipes, angle steel, and channel steel.

n 5. Gas-electric separation, safe design

The equipment features a separate design for oil, electricity, and gas circuits, allowing for independent transport without interference, ensuring safe, stable, and reliable operation.

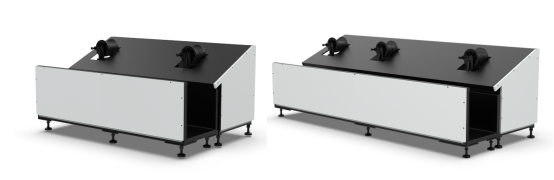

n 6. Optional 2-3 meter unloading rack

With the front clamp migration function, a 2-3 meter unloading rack can be selected for cutting longer finished materials.

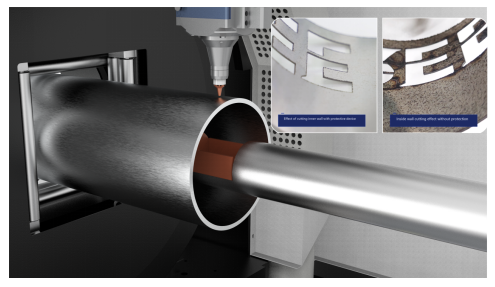

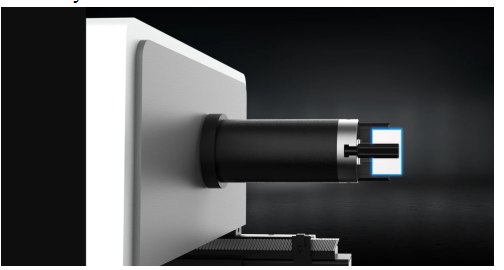

n 7. Optional inner wall protection device

An optional inner wall protection device can be added to ensure a smooth and slag-free inner wall during cutting, enabling one-time forming, reducing processing steps, saving labor and time, and improving production efficiency.

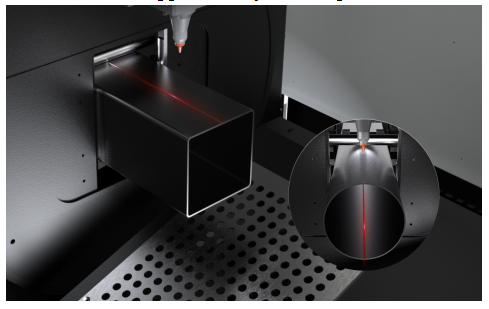

n 8. Optional weld seam recognition

By adding a camera photo upload function, the system compares the uploaded photos to identify the weld seam location, allowing the weld seam to appear in any desired position.

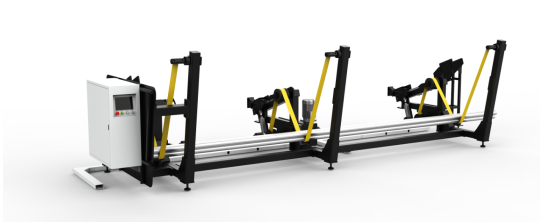

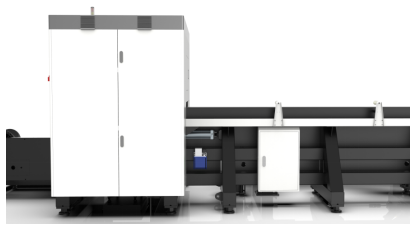

n 9. Optional Fully Automatic Feeding System

Optional fully automatic feeding unit, fully freeing up manpower, intelligent processing, high efficiency and speed, improving production efficiency.
