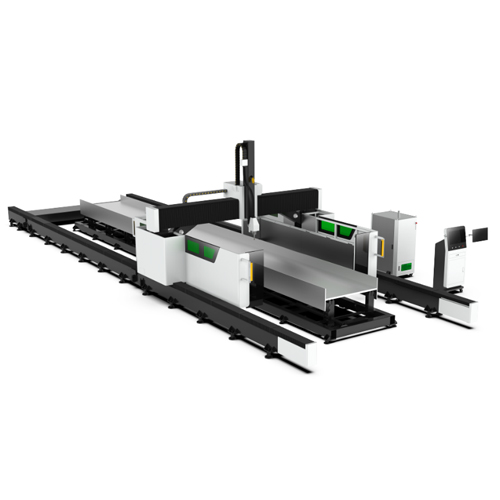

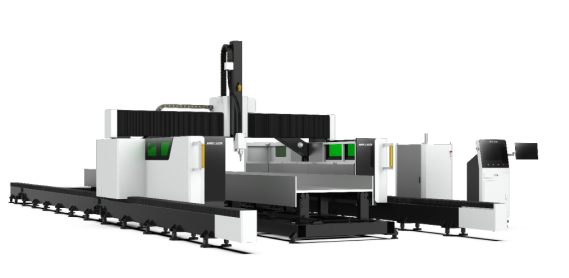

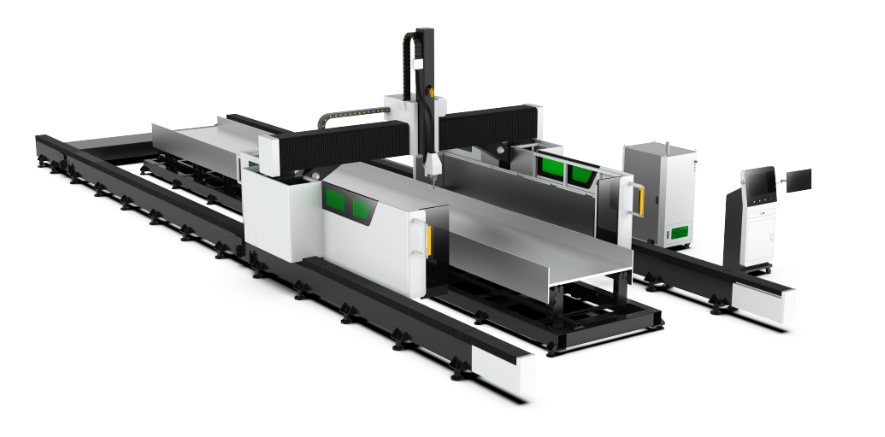

Equipment Name and Appearance

GR-H series  GR1500H-13

All-round Laser Cutting Machine for Steel Structure Industry

Application Industries: Steel structure construction, bridge engineering, construction machinery, rail transit, shipbuilding, etc.

One-stop solution for profiles, sheets, and pipes

Visual scanning, automatic compensation, intelligent cutting

Intelligent multi-station, high-efficiency production

Tekla seamless docking and simple production

Equipment Name: GR1500H-13

1、Quantity: 1 unit

2、Category: All-round Laser Cutting Machine

I. Equipment configuration list

*Note: 1. If the customer purchases the above configuration, it is recommended to purchase the specified brand and model; if the equipment configuration is changed arbitrarily, the customer shall bear the impact on the overall performance.

2. The warranty period for the entire equipment (excluding easily damaged parts and consumables such as optical fibers and lenses, natural disasters, war, illegal operation, and human damage) is one year.

II. Equipment configuration parameters

Note: The achievable accuracy of the workpiece depends to some extent on factors such as workpiece type, pre-treatment, plate size, and the plate's position within the working area.

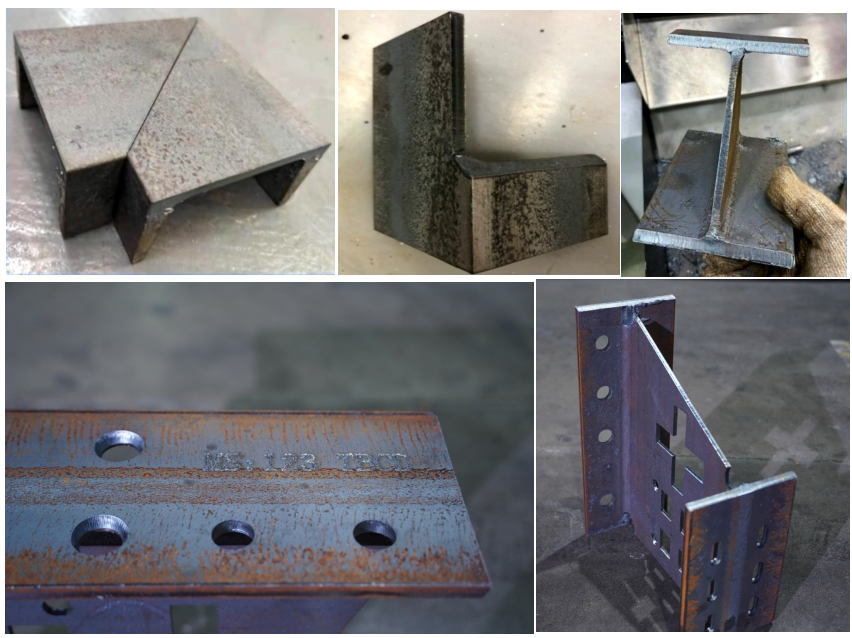

III. Cutting Sample Display

IV. Main Equipment Configuration Description

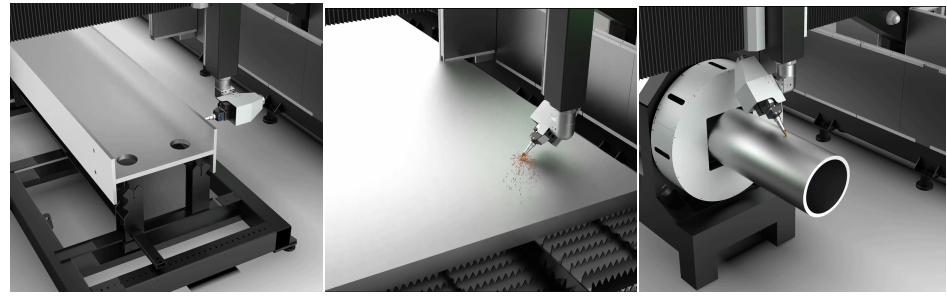

n 1. All-round laser cutting machine, one machine can solve the processing needs of profiles, plates, and pipes

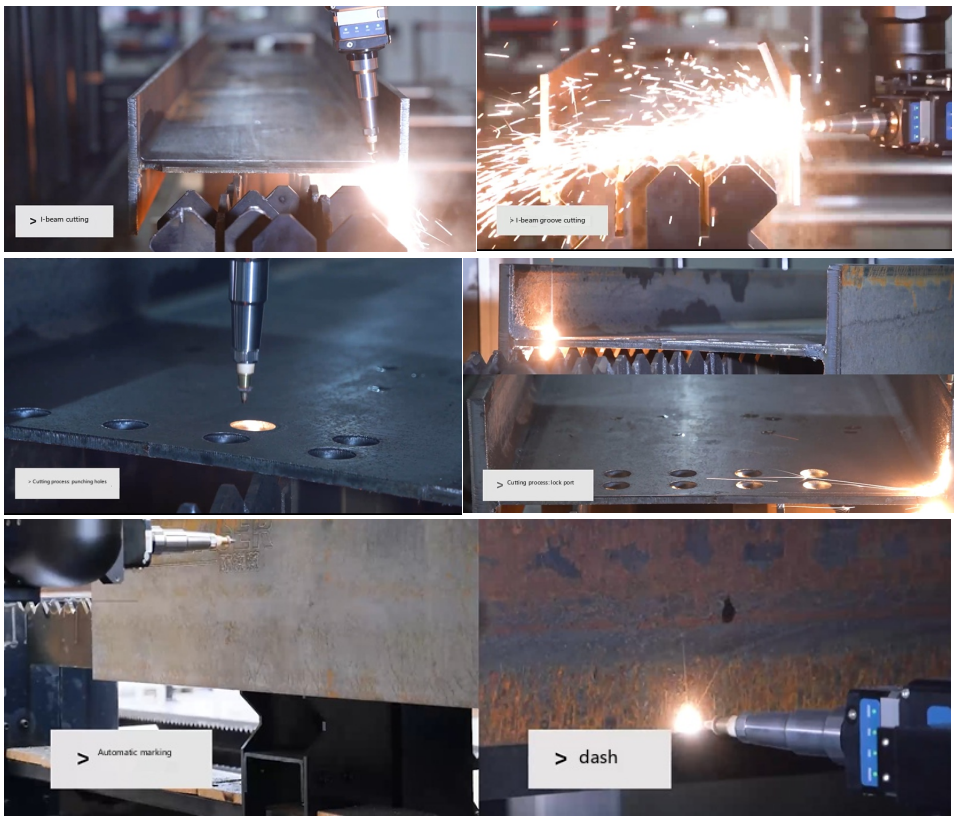

n 2. Cutting, beveling, drilling, locking, marking, scribing, one-stop solution for multiple processing needs of steel structures.

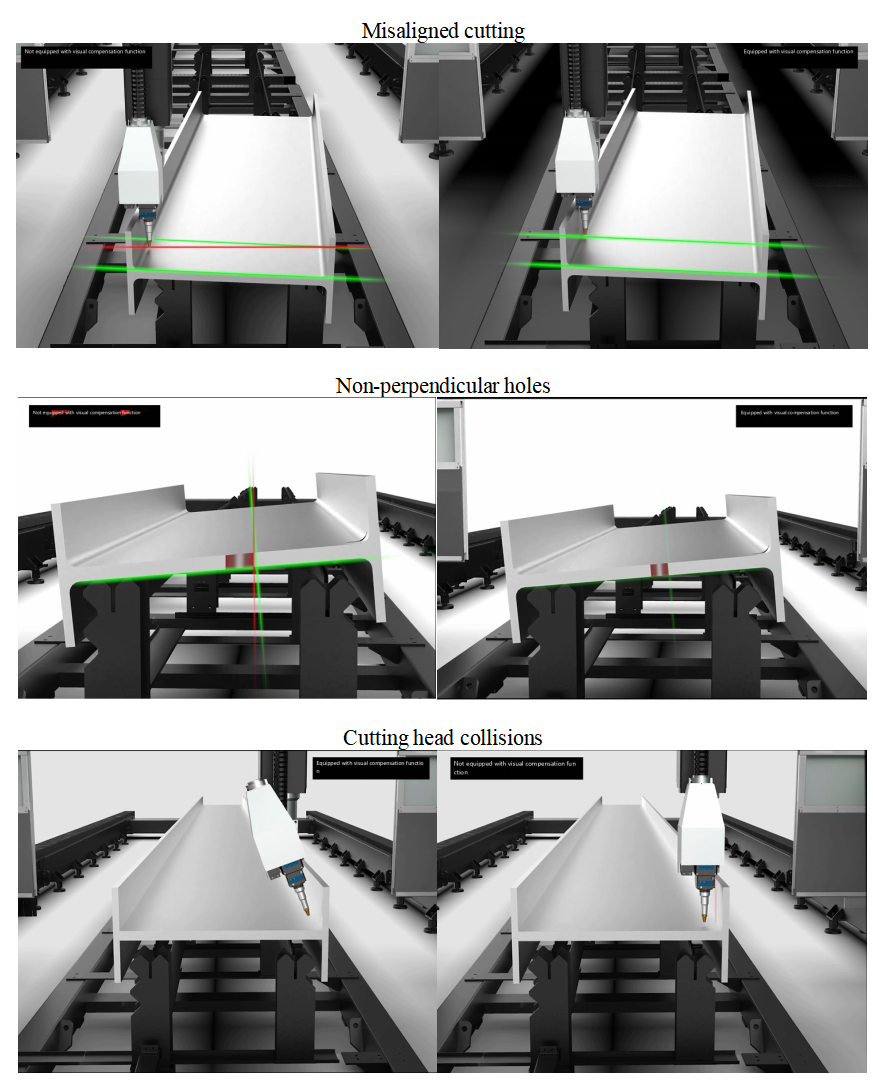

n 3. Visual scanning, automatic compensation, intelligent cutting.

nEffectively solves problems caused by profile deformation, such as misaligned cutting, non-perpendicular holes, and cutting head collisions.

n 4. Professional profile cutting system, intelligent nesting support

Tekla is seamlessly connected with the equipment with intelligent nesting, which has many functions such as material saving and high efficiency, automatic sorting, and precise cutting, which efficiently helps drive the secondary processing line of the section.

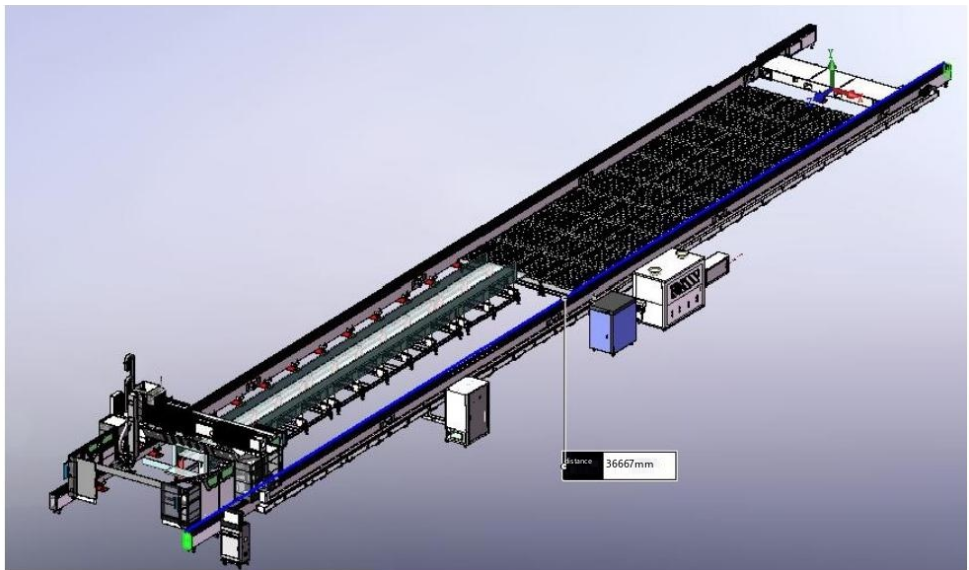

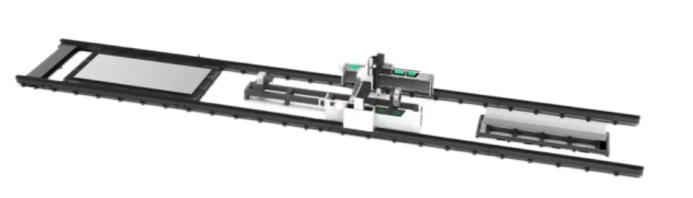

n 5. Intelligent multi-station, high-efficiency production

Intelligent multi-station zoned processing, cutting and loading/unloading are carried out simultaneously, improving production efficiency.

n 6. Double protection, safe production

The processing area is surrounded by safety protection, and safety light curtains are installed in the direction of beam travel.
