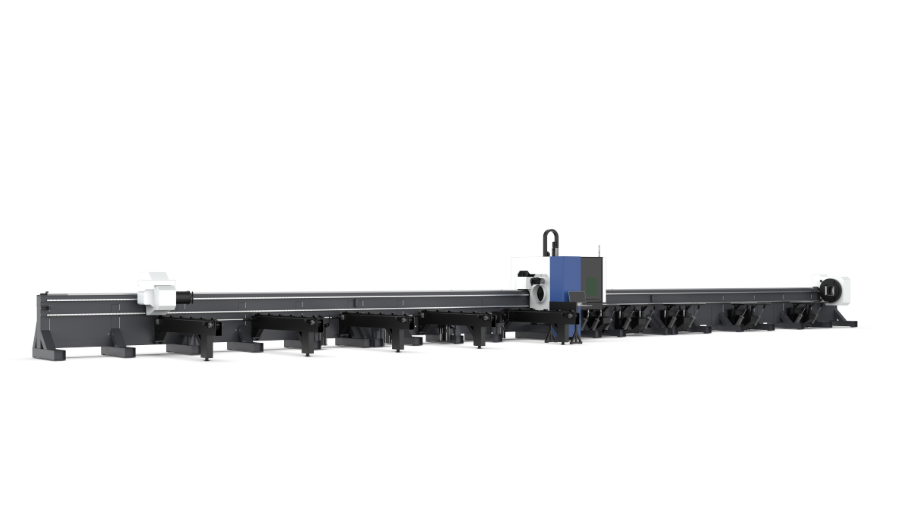

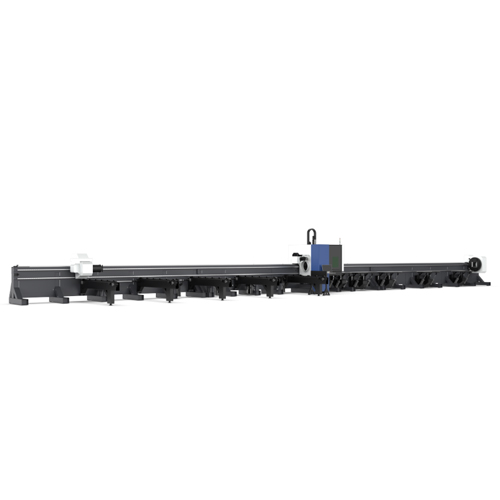

Equipment Name and Appearance

TE Series  TE12035

Heavy-duty Triple-Chuck Laser Tube Cutting Machine

Application Industries: Engineering Machinery, Metal Processing, Bridge Engineering, Construction Machinery, Steel Structure Construction, etc.

Device Name: TE12035

1、Quantity: 1 unit

2、Category: Heavy-duty Triple-Chuck Laser Tube Cutting Machine

I. Equipment Configuration List

*Note: 1. If the customer purchases the above configuration, it is recommended to purchase the specified brand and model; if the equipment configuration is changed arbitrarily, the customer shall bear the impact on the overall performance of the machine.

2. The warranty period for the entire equipment (excluding easily damaged parts and consumables such as optical fibers and lenses, natural disasters, war, illegal operation, and human-caused damage) is one year.

II. Equipment Configuration Parameters

Note: 1. The achievable accuracy of the workpiece depends to some extent on factors such as workpiece type, pre-processing, sheet metal size, and the sheet metal's position within the working area.

2. The above parameters are subject to change without notice; the final technical parameters and actual order agreement shall prevail

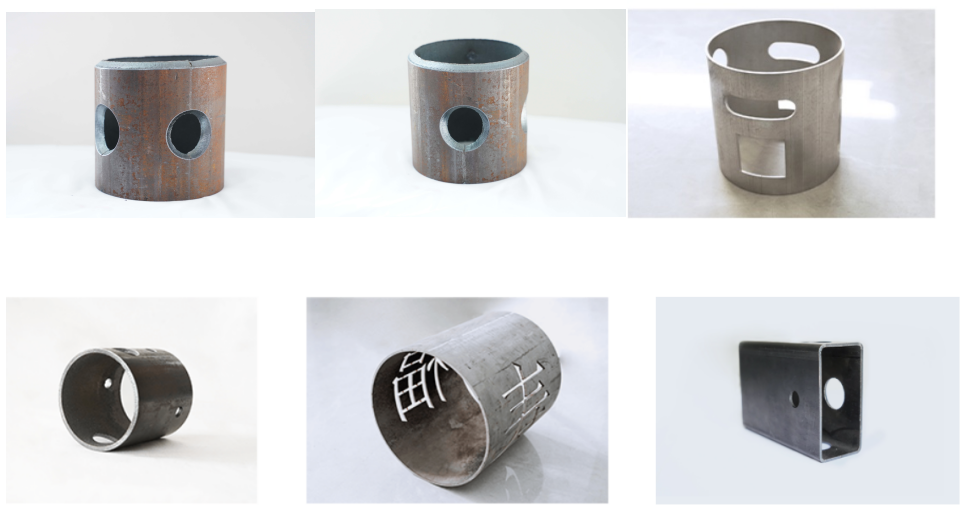

III. Cutting sample display

IV. Main equipment configuration description

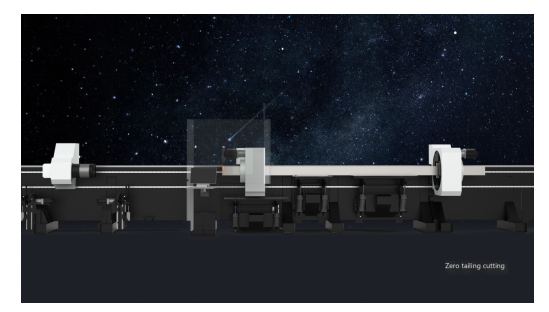

n 1. Whole pipe cutting with zero tail material

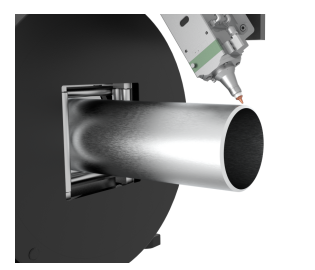

The third chuck can clamp and pull the pipe material, thereby realizing whole pipe cutting with zero tail material.

n 2. Heavy Pipes and Profiles at Your Fingertips

Wide range of cutting applications, adaptable to various cutting conditions, supports machining of ultra-long workpieces up to 12 meters, and pipe machining diameters up to 20-350mm.

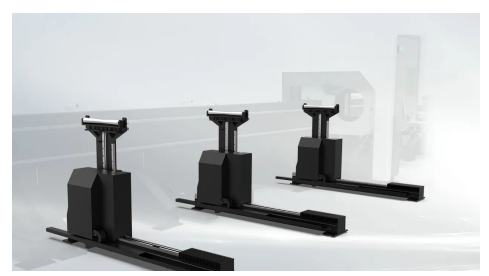

n 3. Machine Equipped with Follow-up Support Device

Equipped with a follow-up material support device, the lifting height is adjusted in real time to prevent pipes from swinging and sagging, while ensuring cutting accuracy.

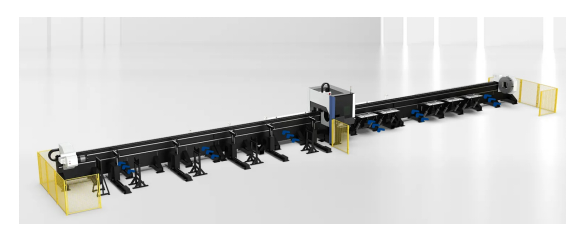

n 4. Automatic Loading and Unloading System

Equipped with an automatic loading and unloading system, the processing efficiency is fast and the degree of intelligence is high, which greatly improves production efficiency and saves labor costs.

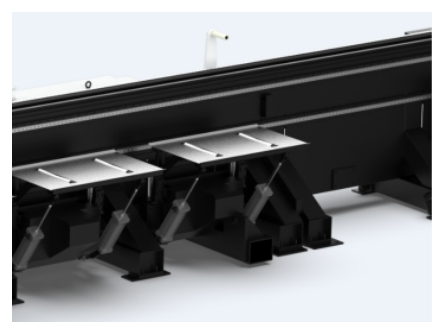

n 5. Safe and Efficient Follow-up Flip Unloading

Equipped with a follow-up flip unloading rack, unloading is safer and more convenient, which greatly improves production efficiency and saves labor costs.

n 6. Intelligent Bus System

Equipped with an intelligent bus system, the response is high, the calculation speed is fast, the stability is reliable, the operation is more convenient, and the cost is greatly reduced, the quality is improved, and the efficiency is increased.

n 7. Optional beveling function

Optional pipe beveling and cutting function, capable of ±45° beveling and cutting, providing professional pipe beveling and cutting solutions.

n 8. Optional weld recognition function

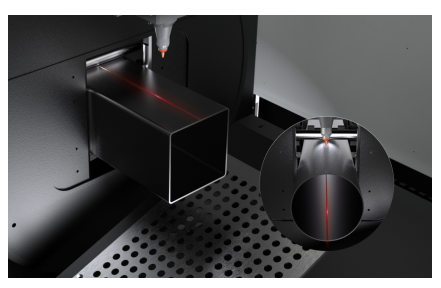

Optional RGB weld seam recognition function for precise weld seam positioning, resulting in more aesthetically pleasing cut workpieces.
